RG59S

Model No.︰

RG59S

Brand Name︰

-

Country of Origin︰

-

Unit Price︰

-

Minimum Order︰

-

Share on:

Product Description

Physical Specifications RG5967BV RG5967BVM RG5967TRI RG5967TM RG59Quad
  Material Dia.(mm) Dia.(mm) Dia.(mm) Dia.(mm) Dia.(mm)
Inner conductor CCS 0.81±0.01 0.81±0.01 0.81±0.01 0.81±0.01 0.81±0.01
Dielectric Foamed PE 3.66±0.1 3.66±0.1 3.66±0.1 3.66±0.1 3.66±0.1
First Shield Bonded Aluminum Foil 3.84 3.84 3.84 3.84 3.84
Second Shield Aluminum Braid 67% 67% 67% 67% 67%
Third Shield ALuminum Foil     4.57 4.57 4.57
Fourth Shield Aluminum Braid
Jacket PVC 6.1±0.1 6.1±0.1 6.2±0.1 6.2±0.1 6.7±0.1
Messenger Steel   1.13±0.01   1.13±0.01


Electrical Specifications     Attenuation @ 68℉ ( 20℃)
Impedance   75±3Ω    5MHz 2.91dB/100m
Nominal Velocity of propogation 85%    55MHz 6.73dB/100m
Nominal Capacitance 50pF/m    83MHz 8.04dB/100m
Sparker Test(VAC) 4000   187MHz 11.81dB/100m
Structural return loss 20dB   211MHz 12.47dB/100m
        250MHz 13.45dB/100m
Mechanical Specifications     300MHz 14.60dB/100m
Breaking Strength of Messenger 712N   350MHz 15.75dB/100m
        400MHz 16.73dB/100m
Note:       500MHz 18.70dB/100m
Inner Conductor: CCS/CU available     550MHz 19.52dB/100m
Jacket: PVC/FR-PVC/LSOH/PE available   600MHz 20.34dB/100m
Jelly/APD: as per customer's requirements   750MHz 22.87dB/100m
        865MHz 24.67dB/100m
Example of Printing:     1000MHz 26.64dB/100m
TIANJIECABLE ® COAXIAL CABLE RG59/U 20AWG 2.2G   1200MHz 29.40dB/100m
(UL) OR (UL) E230635 CM (ETL) 4002107 TYPE CATV    1450MHz 32.41dB/100m
OR CL2 OR CM C(TEL)US 75C SUN RES ROHS **FT    1800MHz 38.72dB/100m
CATV/SATELLITE A B C D E F 1 2 3 4 5 6 7 8 9   2200MHz 42.78dB/100m

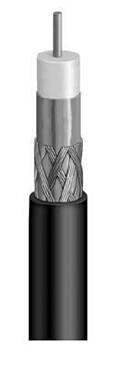

Product Image
