4D-FB

Model No.︰

4D-FB

Brand Name︰

-

Country of Origin︰

-

Unit Price︰

-

Minimum Order︰

-

Share on:

Product Description

Physical Specifications 4D-FB 5D-FB 7D-FB 8D-FB 10D-FB
Inner conductor 1.42±0.01mm CU 1.8±0.01mm CU 2.6±0.01mm CCA 2.8±0.01mm CCA 3.5±0.02mm CCA
Dielectric 3.8±0.1mm FPE 5.0±0.1mm FPE 7.3±0.1mm FPE 7.8±0.1mm FPE 10±0.1mm FPE
First Shield AL Foil  AL foil AL foil AL foil AL foil
Second Shield 35%-85%TC 35%-85%TC 35%-85%TC 85% TC 85% TC
Jacket 6.1±0.1mm PVC 7.5±0.1mm PVC/PE 9.8±0.1mm PVC/PE 10.4±0.2mm PVC/PE 13±0.2mmPVC/PE

Electrical Specifications
Impedance 50±2Ω 50±2Ω 50±2Ω 50±2Ω 50±2Ω
Nominal Velocity of propogation 82% 82% 82% 83% 81%
Nominal Capacitance 81pF/m 81pF/m 84pF/m 84pF/m 84pF/m
Sparker Test(VAC) 3000 3000 3000 3000 3000
V.S.W.R <=1.3 <=1.3  <=1.3  <=1.3  <=1.3
SRL(dB) 20 20 20 20 20

Attenuation @ 68℉ ( 20℃) Max.(dB/100M)
MHz
150 10 7.8 5.4 4.9 4.1
200 11.5 9.1 6.3 6.1 4.8
280 12.9 10.9 7.5 7 5.6
350 16.5 12.2 8.4 8.1 6.3
400 17.6 13 9 8.8 6.9
800 23.6 18.9 12.8 13.1 10.2
900 24.5 20 14.1 14 11.1
1200 28.3 24 16.8 16.7 13.4
1500 33.5 27.2 19.2 19.2 15.3
1900 37.7 31.3 22.4 22.2 17.7
2000 38.7 32.5 23.2 22.8 18.2
2400 42.6 35.8 25.7 24.8 19.6
3000 48.6 40.9 29.5 28.4 22.5

Printing:
TIANJIECABLE ® COAXIAL CABLE 4D-FB 50OHMS 3.0G **M

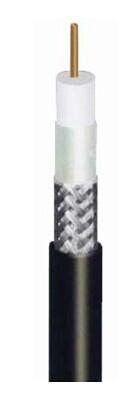

Product Image
