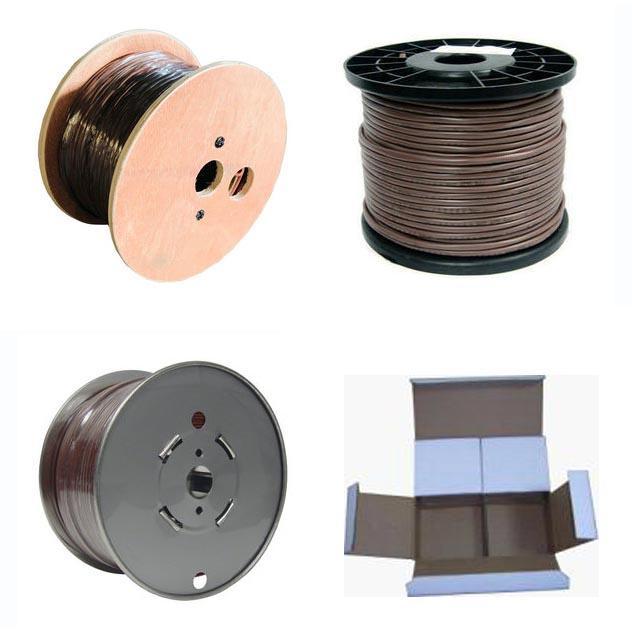

Applications: For use in class 2 circuits, in exposed or concealed wiring
or use in raceways, in dry or damp locations, in accordance with the rules
of the Canadian Electrical Code, Part I.
Conductors: 22 AWG to 16 AWG solid bare copper.
Insulation: PVC
Voltage Rating: 30V
Temperature Rating: -20°C to 60°C
Flame Rating: FT4
Standards: CSA C22.2 No. 35

NO.of Cond.	AWG Size	Insualtion thickness mm	Jacket thickness mm
2 Parallel	22	0.38	0.76
2 Parallel	20	0.38	0.76
6	20	0.38	0.76
8	20	0.38	0.76
10	20	0.38	0.76
2 Parallel	18	0.38	0.76
2	18	0.38	0.76
3	18	0.38	0.76
4	18	0.38	0.76
5	18	0.38	0.76
6	18	0.38	0.76
7	18	0.38	0.76
8	18	0.38	0.76
10	18	0.38	0.76
2 Parallel	16	0.38	0.76
3	16	0.38	0.76
4	16	0.38	0.76
5	16	0.38	0.76
6	16	0.38	0.76

Cable printing:
TIANJIECABLE LVT THERMOSTAT WIRE AWG/C c(UL)us E230635 CMG FT4 (UL) E464899
FPLR (UL) E230636 CL3R (quality tracking NO) 002FT—****FT
