UTP CAT 6 550MHz

Model No.︰

-

Brand Name︰

-

Country of Origin︰

-

Unit Price︰

-

Minimum Order︰

-

Share on:

Product Description

Pair Identification

Pair 1 Blue/White ring & Blue

Pair 2 Orange/White ring & Orange

Pair 3 Green/White ring & Green

Pair 4 Brown/White ring & Brown



Characteristics

Installation Temperature:      0  to 60

Operation Temperature: -20  to 60

Capacitance:     14pf/ft nominal

DC Resistance/Unbalance:     28.6 ohms/1000’Max/5% Max Dielectric Breakdown: 2500 Volts DC Conductor to Conductor Velocity of Propagation: PE       =71%         FEP    =74% nominal Maximum Skew:11ns@100 meters









Input

Impedance

1.0 – 100 Mhz

100 Ohms+15%

100 – 200 Mhz

100 Ohms+22%

200 – 300 Mhz

100 Ohms+32%





4)   Electric Performance

Frequency



MHz

Attenuation



(dB/100m)

Near end Cross Talk



(dB)

ACR



(dB) Min Avg

Power Sum



(dB)

ELFEXT



(dB) MIN

Return Loss (dB)

Max

EIA/TIA



568



CAT 6

Min



Avg

EIA/TIA



568



CAT 6

NEXT MIN

ELFEXT MIN

ACR MIN

Min

EIA/TIA



568



CAT 6

1.0

2.0

2.0

77.3/90

74.3

75.3/85

75.3

65.8

73.3

68.8

23.0

20.0

4.0

3.8

3.8

68.3/83

65.3

64.5/80

66.3

53.7

62.5

56.8

23.6

23.0

8.0

5.3

5.3

63.8/79

60.8

58.5/74

61.8

47.7

56.5

50.7

25.4

24.5

10.0

5.9

6.0

62.3/75

59.3

56.4/70

60.3

45.8

54.4

48.8

26.0

25.0

16.0

7.5

7.6

59.2/72

56.2

51.7/65

57.2

41.7

49.7

44.7

26.0

25.0

20.0

8.4

8.5

57.8/72

54.8

49.4/64

55.8

39.7

47.7

42.8

26.0

25.0

25.0

9.4

9.5

56.3/69

53.3

46.9/60

54.3

37.8

44.9

40.8

25.5

24.3

31.25

10.6

10.7

54.9/68

51.9

44.3/59

52.9

35.9

42.3

38.9

25.0

23.6

62.5

15.3

15.4

50.4/65

47.4

35.1/51

48.4

29.8

33.1

32.9

23.5

21.5

100.0

19.7

19.8

47.3/62

44.3

27.6/44

45.3

25.8

25.6

28.8

23.0

20.1

155.0

25.0

25.2

44.4/62

41.4

19.5/38

42.4

21.9

17.5

25.0

21.6

18.8

200.0

28.8

29.0

42.8/61

39.8

14.0/33

40.8

19.7

12.0

22.8

21.0

18.0

250.0

32.6

32.8

41.3/60

38.3

8.7/30

39.3

17.8

6.7

20.8

20.5

17.3

350.0

39.5

NS

39.1/52

NS

-0.4/20

37.1

14.9

-2.4

17.9

19.8

NS

400.0

42.7

NS

38.3/52

NS

-4.4/14

36.3

13.7

-6.4

16.8

16.9

NS



Jacket Color: Gray, White, Blue, Orange, Purple, Green, Red, Yellow, Black etc.

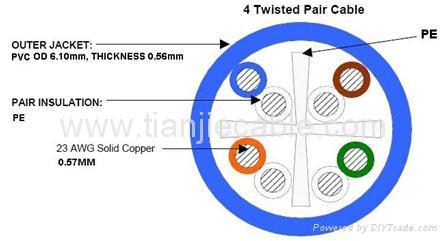

Product Image
